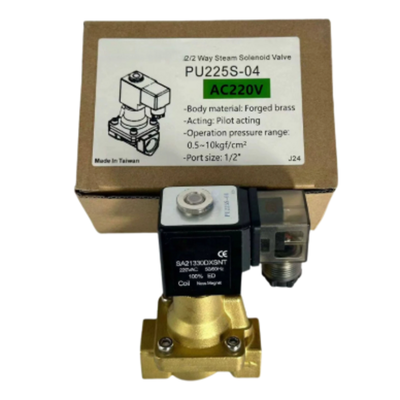

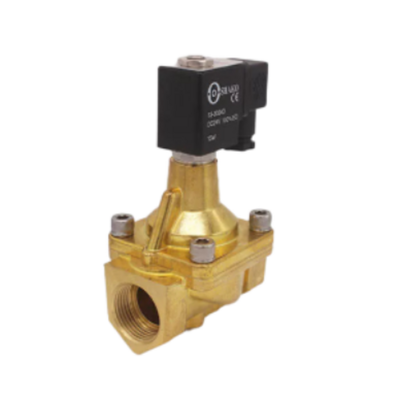

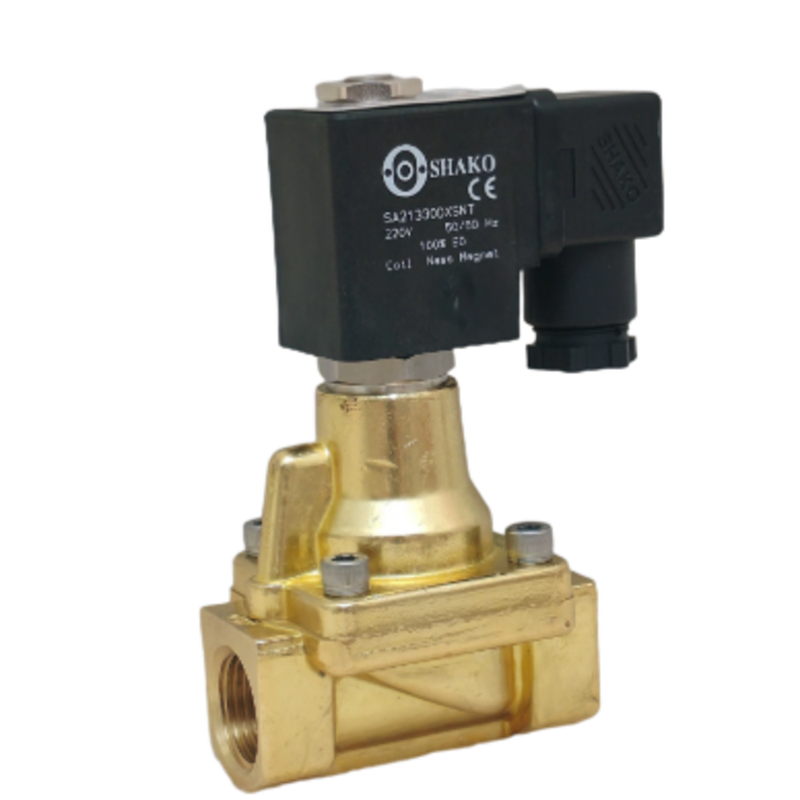

Steam Compatible Pneumatic Solenoid Valve 13mm Orifice Size Standard 220VAC Suitable for Pneumatic Equipment and Systems

Product Description:

The PU225S Series is a 2/2-way normally closed piston pilot-operated solenoid valve made from brass, designed to provide reliable ON/OFF control for steam, hot water, compressed air, and other high-temperature fluids. Its construction ensures dependable performance in applications requiring precise fluid regulation.

Featuring a sturdy brass body combined with PTFE sealing material, the valve guarantees excellent leak-tightness and long-lasting durability, even in demanding steam conditions with temperatures up to +185°C. This robust design makes it an ideal choice for environments where maintaining integrity under heat stress is essential.

The piston pilot-operated mechanism of the PU225S requires a minimum differential pressure of 0.05 MPa (0.5 Bar) to function effectively, which makes it particularly suited for medium to large diameter piping systems. This characteristic ensures consistent operation across a range of industrial setups.

With available port sizes from 3/8" to 1" and orifice diameters of 13mm and 25mm, the PU225S Series delivers superior flow capacity. This, combined with its extended service life, makes it well-suited for continuous-duty industrial applications that demand both performance and reliability.

Manufactured in Ningbo, China, and holding CE certification, the PU225S Series is recognized globally for its high quality and trusted performance across various industries worldwide.

Features:

The piston pilot operated design features pressure-assisted operation, which guarantees reliable switching performance. It requires only a minimum differential pressure of 0.05 MPa (0.5 Bar) to function effectively, ensuring dependable control under varying conditions.

This valve utilizes a 2/2 way normally closed configuration. Equipped with a spring-return mechanism, the valve remains closed when de-energized, providing a fail-safe operation that enhances system safety and reliability.

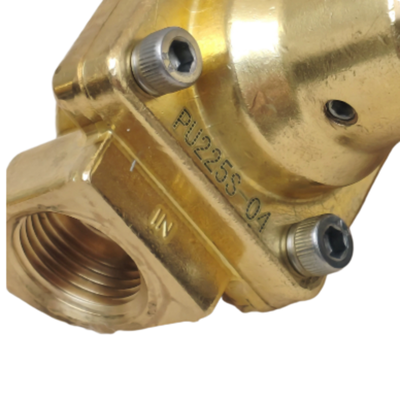

Constructed from durable forged brass, the valve body offers outstanding corrosion resistance and structural strength. This robust construction ensures long-term service life even in demanding environments.

The sealing material is made from high-temperature PTFE, which delivers excellent leak-tight performance. It is suitable for steam applications with temperatures up to +185°C, ensuring reliable sealing under high thermal stress.

Designed to handle a wide pressure range, the valve operates efficiently from 0.05 to 1.0 MPa (0.5 to 10 Bar). This versatility allows it to meet diverse system requirements across various industries.

With a broad temperature compatibility, this product works well with media temperatures ranging from -10°C to +185°C. It is ideal for both steam and hot water applications, providing flexible usage options.

The valve is available in multiple voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). This variety ensures compatibility with various control systems and electrical standards worldwide.

To accommodate different installation needs, it comes with various port sizes: 3/8", 1/2", 3/4", and 1" female threaded connections. This flexibility allows for seamless integration into existing piping configurations.

Certified with the CE mark, the valve complies with international safety and quality standards, offering assurance of its high-quality manufacturing and operational safety.

Supported by a substantial production capacity of 200,000 units per month, this valve ensures a reliable supply chain for bulk orders, meeting both large-scale project demands and timely delivery requirements.

Technical Parameters:

Applications:

Support and Services:

Our Pneumatic Solenoid Valve product is designed to provide reliable and efficient control of pneumatic systems. For technical support, please ensure that you have the model number, specifications, and operating conditions ready when seeking assistance. Our support team can help with installation guidance, troubleshooting, maintenance tips, and performance optimization.

We offer a range of services including product consultation, customization options, and repair services to ensure your pneumatic solenoid valve operates at peak performance. Regular maintenance is recommended to prolong the life of the valve and prevent unexpected downtime.

For detailed technical documentation, including datasheets, wiring diagrams, and user manuals, please refer to the product resources section on our website. Our experts are committed to providing prompt and effective support to help you achieve optimal results with our pneumatic solenoid valve products.
