Product Description:
Material Properties
The majority of products in this category are manufactured from thermoplastic elastomer (TPE). Additionally, materials such as EPDM (Ethylene Propylene Diene Monomer) rubber and Viton (fluororubber) are available as customizable options. TPE stands out for its excellent tensile strength, achieved without the need for fabric reinforcement, and is produced through precise injection molding techniques. This material combines superior flexibility, enabling it to withstand frequent opening and closing actions, with dependable sealing capabilities. Moreover, its cost-effectiveness makes it ideal for a broad range of industrial dust removal applications.
For more demanding environments, EPDM and Viton materials can be selected to address specific challenges, including exposure to high temperatures and corrosive substances. Certain maintenance kits are also equipped with primary and secondary diaphragms, thereby enhancing sealing reliability and ensuring consistent operational stability.
Operating Parameter Properties
The product is designed to operate within the pressure range of 0.4 to 8 bar, aligning perfectly with the pulse valve's operational parameters. Within this range, the pulse valve achieves stable and smooth opening and closing cycles, which are critical for producing the pulsed air impact needed to effectively dislodge dust particles from filter bags.
Temperature tolerance is another key feature, with the material accommodating medium temperatures from -40℃ up to +85℃ and ambient temperatures between -20℃ and +85℃. This wide temperature range allows the product to function reliably under fluctuating thermal conditions common in industrial environments, without becoming brittle or deforming.
Thanks to the combination of high-grade TPE and advanced manufacturing processes, the diaphragm boasts an impressive service life, lasting up to one million operational cycles. This longevity significantly minimizes the frequency of maintenance and replacement, contributing to overall cost savings and efficiency.
Functional and Performance Properties
Serving as the sole moving component of the pulse valve, the diaphragm plays a crucial role in generating rapid opening and closing movements. These actions create shock air waves that effectively dislodge accumulated dust from filter bags. Additionally, its high flow characteristics ensure efficient dust cleaning and quick response times, supporting the economical and reliable operation of the pulse valve system.
In terms of sealing and protection, TPE offers outstanding sealing capabilities. When combined with the diaphragm’s structural design, it effectively prevents gas leaks and exhibits a degree of resistance to contaminants. This helps in minimizing the impact of impurities on sealing efficiency. Furthermore, some exhaust configurations featuring threaded connections reduce the ingress of foreign particles, which indirectly prolongs the diaphragm’s operational lifespan.
Technical Parameters:
| Product Name: |

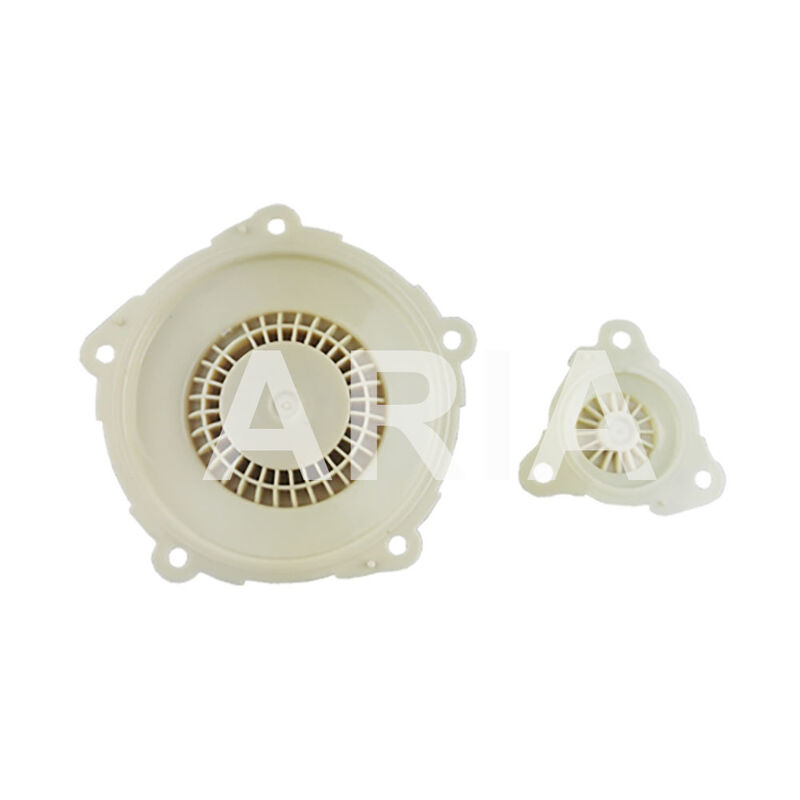

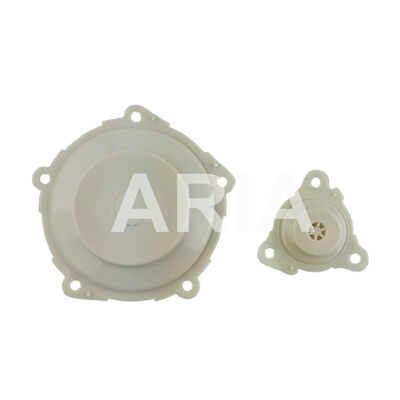

Pulse Valve Diaphragm |
Diaphragm Material: |
TPE |

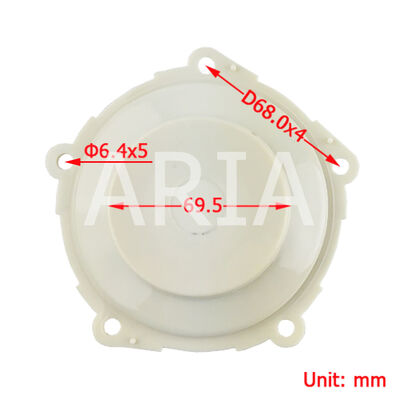

| Fitted Valve Port: |
1 1/2'' |
Fitted Valve Model: |
8296600.8171, 8297600.8171 |
| Highlight: |
8296600.8171 Pulse Valve Diaphragm
,
8297600.8171 Pulse Valve Diaphragm
,
Norgren Pulse Valve Diaphragm
|
| Diaphragm Model |
Port Size |
Pulse Valve Model |
Diaphragm Material |
| 1261253 |
3/4 '' |
8290300.0000,
8296300.8171,
8297300.8171
|
TPE |
| 1261253 |
1 '' |
8290400.0000,
8296400.8171,
8297400.8171
|
| 1261402 |
1-1/2 '' |
8290600.0000,
8291600.0000,
8296600.8171,
8297600.8171
|
| 1268274 |
2 '' |
8290700.0000,
8296700.8171,
8297700.8171
|
| 1268274 |
2-1/2 '' |
8290800.0000,
8296800.8171,
8297800.8171
|
| 1271526 |
3 '' |
8290900.0000,
8296900.9171
|
|
1253119,
1247732
|
2 '' |
8493635 |
VITON |
Applications:
The Taeha Pulse Valve Diaphragm, model number 1261253, is a high-quality component designed for efficient and reliable operation in various industrial applications. Certified by CE, this product guarantees safety and performance standards, making it a trusted choice for professionals. Featuring a durable nylon seat material and a resilient NBR diaphragm, the diaphragm ensures long-lasting functionality and resistance to wear and tear under demanding conditions.
This Pulse Valve Diaphragm is specifically designed to fit pulse valve ports of size 3/4'', making it compatible with a wide range of pulse valve systems. It is an essential part of the Shockwave Diaphragm Kit, which is commonly used in dust collector systems, pneumatic conveying, and other pulse jet cleaning equipment. The diaphragm’s ability to control air pulses precisely helps maintain optimal system performance, reduce downtime, and enhance overall efficiency.
The Shockwave Diaphragm Kit, including this pulse valve diaphragm, is ideal for scenarios where quick and reliable air pulse control is necessary. Industries such as cement manufacturing, power plants, pharmaceutical production, and food processing frequently utilize these kits to maintain clean filters and prevent clogging. Maintenance teams rely on the Taeha Pulse Valve Diaphragm for its easy installation and compatibility, ensuring smooth replacement and minimal disruption to operations.
With a minimum order quantity of just one piece, Taeha offers flexibility for both small-scale and large-scale purchases. The packaging is securely done in cartons to protect the product during transit. Customers can expect delivery within 1-7 workdays after payment, with convenient payment options including T/T, Western Union, and Paypal. Taeha’s supply ability of 5000 pieces per month ensures a steady and reliable supply chain for ongoing maintenance needs.
Overall, the Taeha Pulse Valve Diaphragm is an indispensable component in any Shockwave Diaphragm Kit application. Its robust design, CE certification, and fast delivery service make it an excellent choice for industries requiring efficient pulse valve operation. Whether for replacement or new installations, this product supports optimal performance and longevity of pulse valve systems.
Packing and Shipping:
Product Packaging and Shipping for Pulse Valve Diaphragm

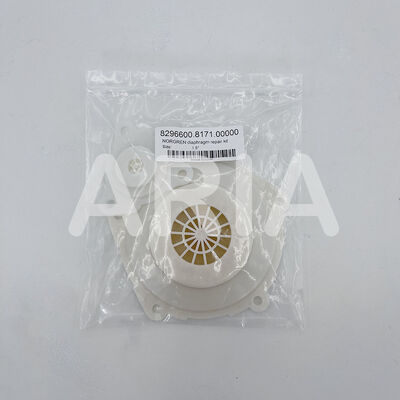

The Pulse Valve Diaphragm is carefully packaged to ensure safe delivery and maintain product integrity. Each diaphragm is individually wrapped in protective material to prevent damage during transit. The wrapped diaphragms are then placed in sturdy, labeled boxes designed to withstand handling and shipping conditions.
For bulk orders, the diaphragms are securely packed in multiple layers within reinforced cartons, with cushioning materials to avoid any movement and impact. All packages are sealed and marked with relevant handling instructions and product information for easy identification.
Shipping is arranged through reliable carriers to guarantee timely and secure delivery. Tracking information is provided to customers for shipment monitoring. We also offer customized packaging and shipping options based on specific customer requirements.
