Merknaam: | GOYEN |
Certificering: | CE |
Modelnummer: | RCA35T |
Minimum Order Quantity: | 1 |
---|---|
Prijs: | Onderhandelbaar |
Packaging Details: | Carton /As The Clients Require |
Delivery Time: | 1-7Work Days After Payment |
Betalingscondities: | T/T, Western Union, PayPal |
Supply Ability: | 5000 Pieces/1Month |
Klepreeks:: | T -serie | Lichaamsmateriaal: | Aluminium (diecast) |
---|---|---|---|
Werkdrukbereik: | 5 tot 125 psi | Klepstructuur: | Rechte hoek, schroefdraadpoort |
Poortgrootte:: | 1 1/2 '' | Diafragma -materiaal: | NBR, FKM |
Markeren: | 1.5-inch electromagnetic pulse valve,Pneumatic spray pulse valve,RCA35T pulse jet valve |
Pulse Jet Valve Overview: Pulse Jet valve is a type of valve that transforms the continuous input signal into a pulsating signal through the delay caused by the movement of gas within gas resistance and gas capacity.
Inner Structure Features: The air inlet structure of the right angle pulse jet valve, along with the use of a positioning steel ring during installation, serves to prevent loosening from inertial impacts. This also guarantees the precise installation position.
Durability and Convenience: Even after prolonged use, the stainless steel nut on the valve maintains its durability, ensuring easy disassembly and reassembly as needed.
Bag Filter Pulse Cleaning System
Function: The bag filter pulse cleaning system controls the immediate release of compressed air into the filter bag to eliminate surface dust.
Applicable Equipment:
This system is used for pulse airflow dredging in cases of blocked pipelines, such as in grain and fly ash conveying pipelines.

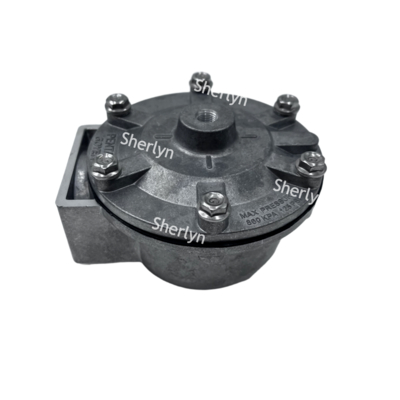

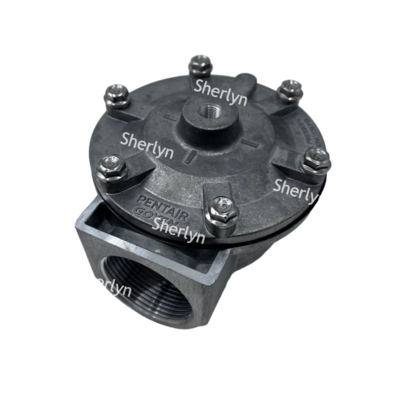

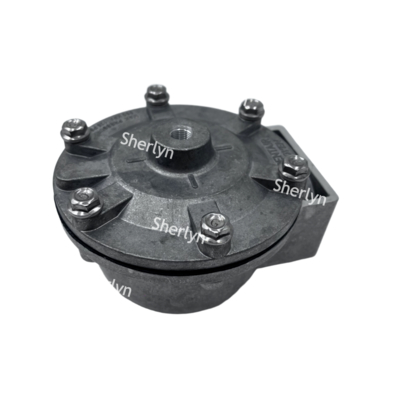

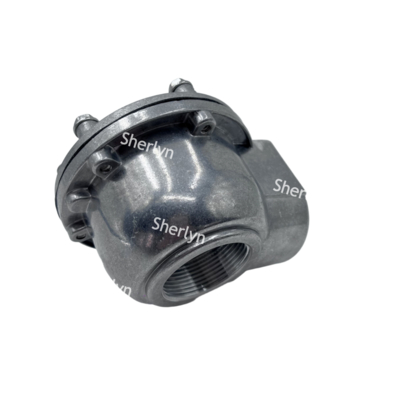

1-1/2'' RCA35T Replacement Remote Pilot Valve For Dust Collector
Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.
Different Structure:
1. Right Angle Type
2. Submerged Type
3. Quick Mount Type
4. Straight Through Type
5. Flanged Type
Main Dimension:
Model No | RCA15T | RCA20T | RCA25T | RCA35T | RCA45T | RCA50T | RCA62T | RCA76T |
Orifice Size | 15 | 20 | 25 | 35 | 45 | 50 | 62 | 76 |
(mm) | ||||||||
Port Size | 1/2'' | 3/4'' | 1'' | 1 1/2'' | 1 1/2'' | 2'' | 2 1/2'' | 3'' |
Pilot Size | 1/8'', 1/4'' | |||||||
Diaphragm Number | 1 | 2 | ||||||
Working pressure | 5 to 125 psi | |||||||
Diaphragm Material | NBR, FKM | |||||||
Body Material | Aluminum (diecast) | |||||||
Valve Structure | Right Angle (Outlet is at 90° to Inlet) |
The Product Technical Support and Services for Pulse Jet Valves include:
- Troubleshooting assistance for installation and operation issues
- Maintenance guidelines and recommendations
- Repair services for damaged or malfunctioning valves
- Product training and education for proper usage
- Upgrades and enhancements to improve valve performance
Product Packaging and Shipping:
The Pulse Jet Valves are carefully packaged to ensure they arrive in perfect condition. Each valve is placed in a sturdy box with ample padding to prevent damage during transit. The packaging is designed to be compact and efficient to minimize shipping costs.
For shipping, we use reliable courier services to deliver the Pulse Jet Valves to your doorstep in a timely manner. You will receive a tracking number once your order is dispatched so you can monitor the delivery status.
